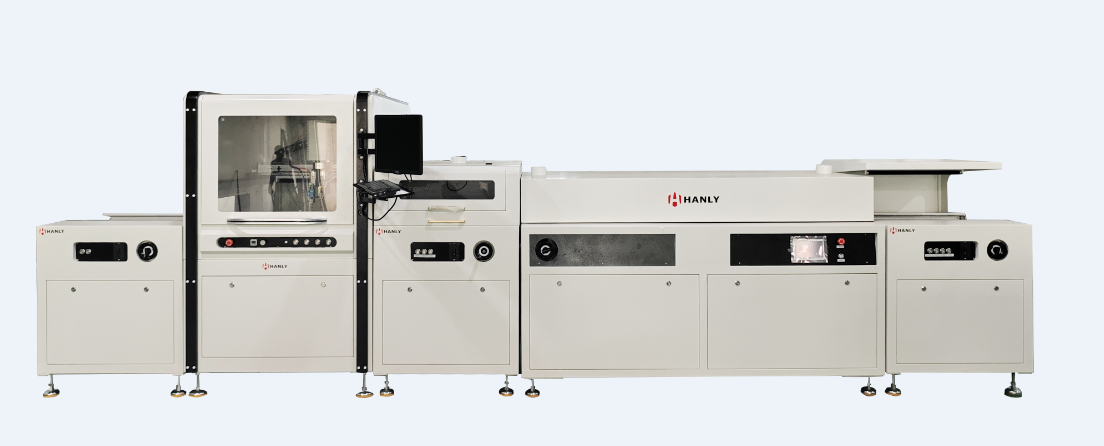

Automatic Conformal Coating Line / Selective Coating Line

Device parameters:

Frame size L * W * H

L1035mm * W1300mm * H1700mm

control method

Industrial computer + board

Operation method

Computer control

Programming style

Manual teaching

Number of running programs stored

1000 or more

PCB transmission height:

920 ± 20mm

Transport speed:

0-5000mm / min

Transmission direction:

L → R (R → L)

Transmission motor power

60W motor speed reducer

Conveyor rail width

50-450mm

PCB board size

MAXL450 * W450

PCB board component height

MAX70mm

Way width adjustment

automatic adjustment

X.Y.Z drive method

servo motor

X.Y.Z maximum speed

800mm / s

Valve type:

1 needle valve+1 Spray valves / 2-4 Sets of Valves Optional

Tank volume

One 10L stainless steel inner bucket with stirring pressure bucket + one small washing pressure bucket

Lighting section

Equipment comes with lighting source

Detection section

Equipment comes with UV detection light source

power supply

AC220V

Gas source

4-6kgf / cm2

Total power

1.8KW

Minimum glue output

0.4g

Scope of application:

UV dispensing, component packaging, solder paste, red glue, black glue, semiconductor packaging, wafer fixation, etc

X. Y, Z, U 4-axis movement, the valve body can rotate 360 ° to realize all-around dispensing function

Characteristic:

Computer control, WINDOWS operating system, audible and visual fault alarm and menu display

CCD visual positioning system

Servo motor+ball screw drive

Can carry: injection valve

Automatic thermostatic system of valve body ensures consistent fluidity of coating

Online visual programming

The laser height detection system can be selected, and the Z-axis height can be automatically calibrated after the workpiece is deformed

Workpiece heating system can be selected to enhance the fluidity of paint when filling the bottom

Precision weighing system can be selected to intelligently control and detect the dispensing amount to ensure the consistency of dispensing
