Automatic PCB Loader

¤ Suitable To Handle Single Sided/Double Sided Boards
¤ Dedicated Aluminum Machine Frame With Specialized Plastic Rail Chain
¤ 90W Taiwanese Motor Driven, Ballscrew For Sychronization Of Magazine Up/Down
¤ Taiwanese 15W Constant Speed Motor For Conveyor Driven
¤ Pneumatic Board Clipping Structure
¤ Programmable Mitshubishi PLC Controlled
¤ Ballscrew Adjustment For Location Of Board Pushing Pneumatic Cylinder
¤ Real Color Touch Screen Controls
¤ SMEMA Interface
¤ Individual Electric Console
¤ Option Of Varies Board Size Model


Loader& Unloader Series

Loader& Unloader Series

Automatic PCB Loader

¤ Suitable To Handle Single Sided/Double Sided Boards
¤ Dedicated Aluminum Machine Frame With Specialized Plastic Rail Chain
¤ 90W Taiwanese Motor Driven, Ballscrew For Sychronization Of Magazine Up/Down
¤ Taiwanese 15W Constant Speed Motor For Conveyor Driven
¤ Pneumatic Board Clipping Structure
¤ Programmable Mitshubishi PLC Controlled
¤ Ballscrew Adjustment For Location Of Board Pushing Pneumatic Cylinder
¤ Real Color Touch Screen Controls
¤ SMEMA Interface
¤ Individual Electric Console
¤ Option Of Varies Board Size Model

Traverser Series

Traverser Series

HL Series Traverser

¤ Located Between Two Production Lines, Handling Board Transplanting Process
¤ Strengthened Machine Frame
¤ Main Frame Made By Dedicated Aluminum Alloy
¤ Servo Motor Driven Transplanting Movement
¤ Stepper Motor Driven Conveyor Transportation
¤ Programmable Mitshubishi PLC Controls
¤ Touch Screen Control Interface
¤ Option Of Single/Dual Transplanting Trolley
¤ Single/Dual Lane Structure Available
¤ SMEMA Interface
¤ Cushioning Designed
¤ Custom Made Transplanting Distance Is Available

Buffer Series

Buffer Series

HL Series Buffer

¤ Located After SPI Machine, For Storage Of Boards Having Printing Issues
¤ Built-In NG/OK Recognition Features
¤ Imported Bearings For Board Transportation
¤ Servo Motor Driven Board Positioning
¤ Width Adjustment In Smoothness And Perfect Parallelism
¤ Mitshubishi PLC Controls
¤ Touch Screen Control Interface
¤ SMEMA Interface

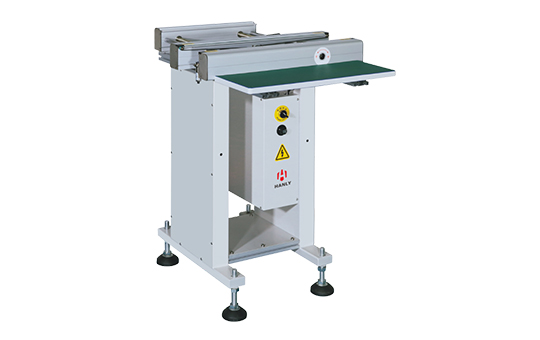

Conveyor Series

Conveyor Series

HL Series Single Lane/ Dual Lane Conveyor

¤ For Connection Between Different SMT Machine/Increase Specific Station
¤ Strengthened Aluminum Structure
¤ Width Adjustment In Smooth And Perfect Parallelism
¤ Option Of Belt/Rail Chain Conveyor
¤ Conveyor Speed Adjustable
¤ Option Of Lighting Structure
¤ Option Of Board Stop For Inspection
¤ Custom Decided Numbers Of Board Stop Station
¤ Single/Dual Lane Structure Available
¤ ESD Controlled
¤ Option Of Telescopic Structure
¤ Option Of Lifting Structure
¤ Varies Maximum Process Width Is Available
¤ Custom Made Conveyor Length Is Available

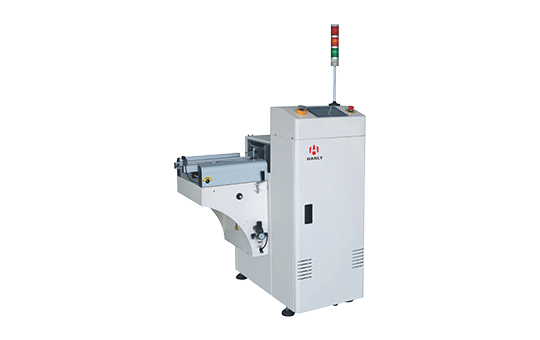

PCB Cleaning Series

PCB Cleaning Series

HL Series Board Cleaner

¤ Advance Cleaning Of Boards Before Printing Machine
¤ Modulized Structure And Design
¤ High Rotation Cleaning Brush
¤ High Performance Cleaning Roller And Dust Removing Roller
¤ Strengthened Underneath Board Support
¤ Dirt And Dust Collection Box
¤ Mitshubishi PLC Controls
¤ Touch Screen Control Interface
¤ SMEMA Interface
¤ Real Time Status Monitoring With Light Tower Indication

Manual Insertion Line

Manual Insertion Line

Model NO. HL-3000MI
Product Name
Auto/Manual Insertion Line
Dimension: (L)3000*(W)600*(H)1950+-20
Table Height:750+-20mm
PCB Width: 50-350mm(Adjustable)
Main Body : 40*40mm Aluminium
With Lighting system
40W lighting
Line Socket, Both Sides Separate Control
Application
DIP Production Line
Specification
(L)3000*(W)600*(H)1950+-20mm

ESD Working Table

ESD Working Table

Touch screan & Control panel Optional
Modular design
Laser carved stainless steel side guides for superior quality and durability
PCB inspection mode provided
Smooth and parallel width adjustment
Different lengths available upon request
Multi-zone concept available upon request
Equipped with lighting features, single layer part tray and adjustable foot rest
Variable speed control
SMEMA compatible

Solder Paste Mixer

Solder Paste Mixer

Model: HL-JB90A
Voltage: AC 220V 50Hz 60W
AC 110V 50Hz 60W
(Optional for client demand)
Rotation Speed:
First:1380RPM;
Second:600RPM
Container:
500G*2 Tin (Up to Two containers)
(Support M tank diameter φ60-φ67 standard Size)
Display: Micro LED Digital display
Machine Size : W400*D400*H500mm(With Foot cup)
Net Weight : About 35KG

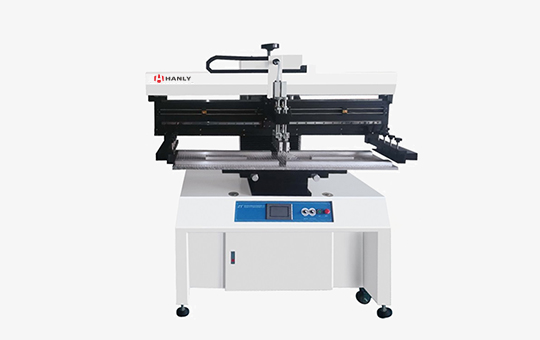

Semi-Auto Printer

Semi-Auto Printer

Print-table Area 320*700mm
Board Size max 300*700mm
Board Thickness 0.2~5.0mm
Print Accuracy ±0.02mm
Repeat Accuracy ±0.02mm
Shape Dimension 1150*900*1650mm(L*W*H)
Print-position fixed: Exterior/Reference pin
Platen Adjustment: Front/Rear±10mm,Left/Right±10mm
Air pressure: 0.4~0.6Mpa
Power: 1φ AC 220V 50/60HZ
