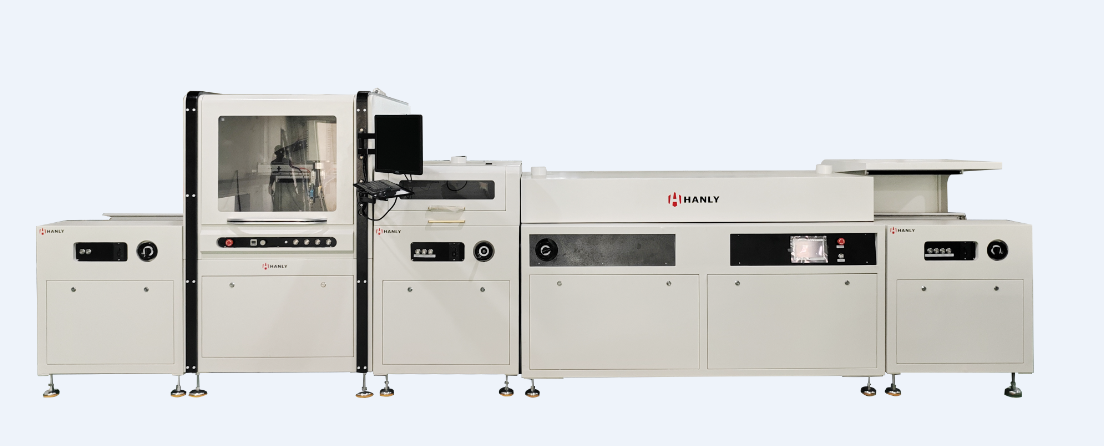

Conformal Coating Line

Conformal Coating Line

Advantages of Using Conformal Coating Machine:
Conformal coatings are used to protect electronic components from the environmental factors they are exposed to. Includeing moisture, dust, salt, chemicals, temperature changes and mechanical abrasion. Successful conformal coating will prevent the board from corroding. More recently, conformal coatings are being used to reduce the formation of whiskers, and can also prevent current bleed between closely positioned components.

Conformal coatings are breathable, allowing trapped moisture in electronic boards to escape while maintaining protection from contamination. These coatings are not sealants, and prolonged exposure to vapours will cause transmission and degradation to occur. There are typically four classes of conformal coatings: Acrylic, Urethane, Silicone, and Varnish. While each has its own specific physical and chemical properties each are able to perform the following functions:

1. Insulation:Allowing closer conductor spaci

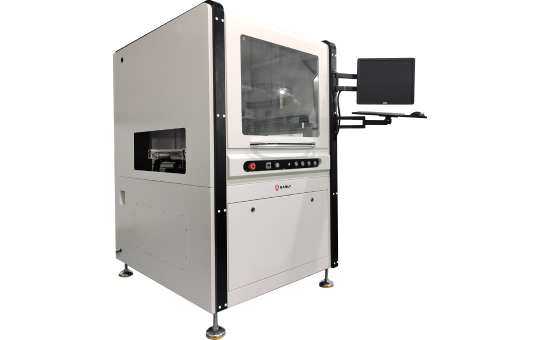

Coating Machine

Coating Machine

HL-REST532
Device parameters:
Frame size L * W * H L1035mm * W1300mm * H1700mm
control method Industrial computer + board
Operation method Computer control
Programming style Manual teaching
Number of running programs stored 1000 or more
PCB transmission height: 920 ± 20mm
Transport speed: 0-5000mm / min
Transmission direction: L → R (R → L)
Transmission motor power 60W motor speed reducer
Conveyor rail width 50-450mm
PCB board size MAXL450 * W450
PCB board component height MAX70mm
Way width adjustment automatic adjustment
X.Y.Z drive method servo motor
X.Y.Z maximum speed 800mm / s
Valve type: 1 needle valve+1 Spray valves
Tank volume One 10L stainless steel inner bucket with stirring pressure bucket + one small washing pressure bucket
Lighting section Equipment comes with lighting source
Detection section Equipment comes with UV detection light source
power supply AC220V
Gas source 4-6kgf / cm2
Total power 1.8KW
Minimum glue output 0.4g
Scope of application:

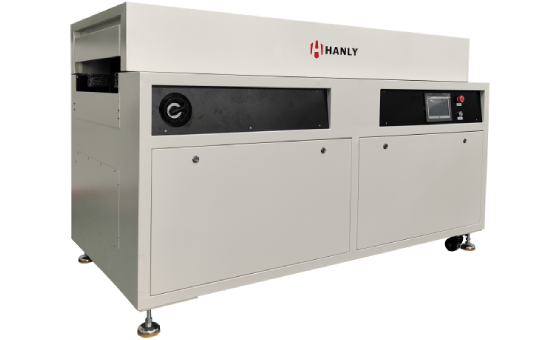

Curing Oven

Curing Oven

1. Transportation system:
1) The chain conveying method is adopted, and the width between the chains can be adjusted arbitrarily in the range of 50-450mm to meet the various connection methods of customers. The chain uses stainless steel extension pin chain.
2) The transport speed is adjustable.
3) The special reinforced aluminum alloy guide rail can withstand high temperature, and cooperate with the support adjustment mechanism to ensure the minimum amount of deformation, the track is prohibited from shaking, and the phenomenon of falling plate is prevented.
2. Heating system
1) Using the heating principle of heating tube, uniform heating improves heating efficiency.
2) The furnace and the inner tank are welded with T1.5 iron plate, which is strong and durable. The outer thick insulation cotton ensures minimal heat loss, saves electricity and does not increase the temperature of the environment and increase the load of the air conditioner.
3) Heating temperature zone: Each temp

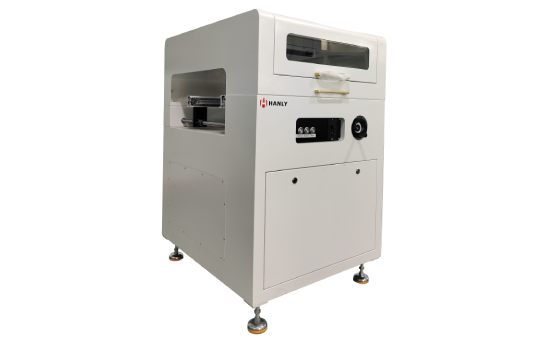

UV Inspection Conveyor

UV Inspection Conveyor

HL-RES202
Function description:
1. Control part: button-type control, simple and easy to understand;
2. Rack part: The rack is made of galvanized sheet welding. The process of electrostatic powder spraying and baking powder is completed. The overall sealing can reduce gas leakage. The acrylic window is easy to observe, and the whole machine is beautiful and easy to open.
3. Conveying part: the conveying speed is adjustable from 0 to 3.5 m/min; 5 mm thick and high hardness conveying aluminum material, stainless steel chain drive, the conveying width can be manually adjusted, the range is 50-450 mm; the conveying method is divided into online and straight Type, the sensor is Taiwan Yangming sensor, to prevent false induction.
4. Whole line docking: The device can be docked with signals from other devices;
5. Detection part: The device has its own lighting lamp, and the device has its own fluorescent lamp, which can detect objects with fluorescent agents.

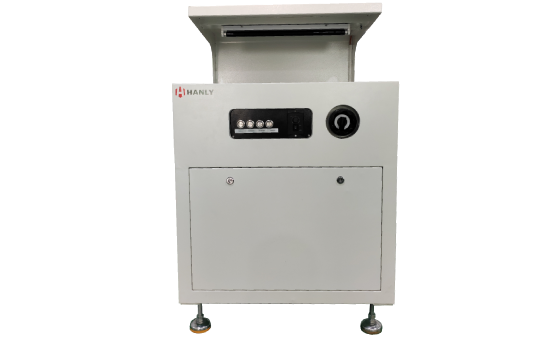

UV Conveyor

UV Conveyor

HL-RES203
Function Description:
1. Control part: button type control, simple and easy to understand;
2, the frame part: the frame is made of galvanized sheet welding, the process of electrostatic powder baking powder is completed, the open detection area is convenient, and the board is convenient;
3, conveying part: conveying speed 0~3.5 m / min adjustable; 5 mm thick high hardness conveying aluminum, stainless steel chain transmission, conveying width can be manually adjusted, the range is 50-450 mm; conveying mode is divided into online and straight The sensor is a Taiwan Yangming sensor to prevent false induction.
4. Docking the whole line: the device can be connected to other equipment signals;
5, the detection part: the device comes with a lighting, the device comes with a fluorescent light, can detect objects with fluorescent agents

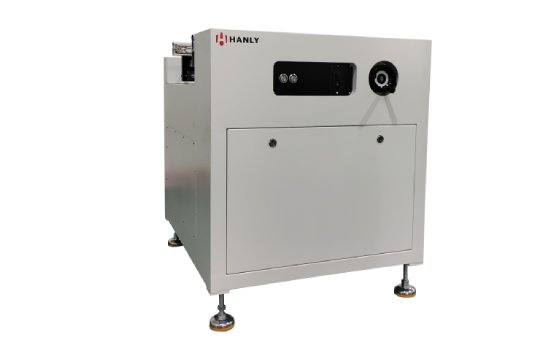

Coating Conveyor

Coating Conveyor

HL-RES201
Function Description:
1, control part: button control, simple and easy to understand;
2, The Rack part: the frame uses galvanized plate welding production, electrostatic powder baking process completed;
3, transport part: Delivery speed 0 ~ 5mm m/min adjustable; 3.5 thick and high-hardness aluminum transport, stainless steel chain drive, the delivery width can be adjusted manually, with a range of 50-450mm; and the delivery mode can be divided into in-line and in-line, sensors for Taiwan Yangming sensors, anti-false induction.
4, The whole line docking: equipment can be other equipment signal docking
