Conformal Coating

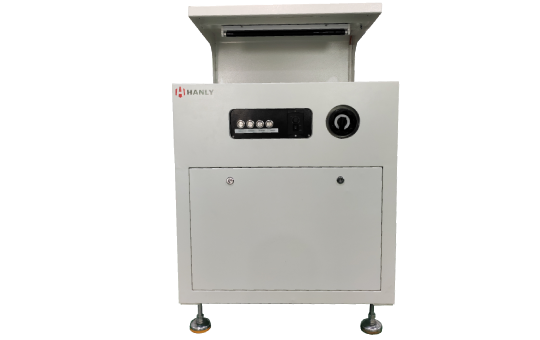

UV Conveyor
Technical Details
HL-RES203
Device parameters:
Dimensions L*W*H |
L800mm*W850mm*H1230mm |
PCB transfer height: |
920±20mm |
Transportation speed |
0-3500mm/min adjustable |
Delivery direction: |
L→R(R→L) |
Transmission motor power |
AC220V 40W |
Delivery method |
Chain conveyor (35B 5mm long pin stainless steel chain) |
AM mode: |
Manual adjustment |
PCB board size |
MAXW450*L450 |
illumination |
The device comes with an LED explosion-proof incandescent lamp |
Detection |
The device is equipped with an LED explosion-proof UV detection light source |
power supply |
AC220V |
Total power |
0.1KW |
Function Description:
1. Control part: button type control, simple and easy to understand;
2, the frame part: the frame is made of galvanized sheet welding, the process of electrostatic powder baking powder is completed, the open detection area is convenient, and the board is convenient;
3, conveying part: conveying speed 0~3.5 m / min adjustable; 5 mm thick high hardness conveying aluminum, stainless steel chain transmission, conveying width can be manually adjusted, the range is 50-450 mm; conveying mode is divided into online and straight The sensor is a Taiwan Yangming sensor to prevent false induction.
4. Docking the whole line: the device can be connected to other equipment signals;
5, the detection part: the device comes with a lighting, the device comes with a fluorescent light, can detect objects with fluorescent agents
