Conformal Coating

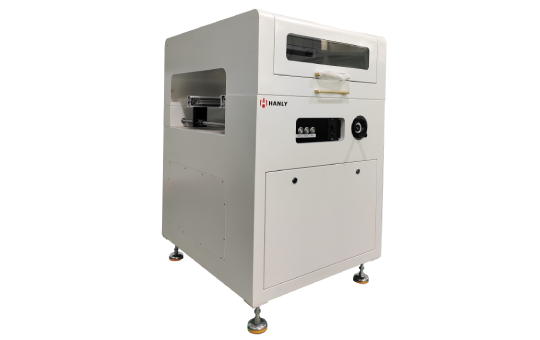

UV Inspection Conveyor
Technical Details
HL-RES202
Device parameters
Overall size L * W * H |
L800mm * W855mm * H1230mm |
PCB transmission height: |
920 (950) ± 20mm |
Transport speed |
0-3500mm / min adjustable |
Transmission direction: |
L → R (R → L) |
Transmission motor power |
AC220V 40W |
Conveying method |
Chain conveying (35B 5mm extension pin stainless steel chain) |
AM method: |
Manual adjustment |
PCB board size |
MAXW450 * L450 |
illumination |
The device comes with an LED explosion-proof incandescent lamp |
Detection |
The device has an LED explosion-proof UV detection light source |
power supply |
AC220V |
Total power |
0.2KW |
Function description:
1. Control part: button-type control, simple and easy to understand;
2. Rack part: The rack is made of galvanized sheet welding. The process of electrostatic powder spraying and baking powder is completed. The overall sealing can reduce gas leakage. The acrylic window is easy to observe, and the whole machine is beautiful and easy to open.
3. Conveying part: the conveying speed is adjustable from 0 to 3.5 m/min; 5 mm thick and high hardness conveying aluminum material, stainless steel chain drive, the conveying width can be manually adjusted, the range is 50-450 mm; the conveying method is divided into online and straight Type, the sensor is Taiwan Yangming sensor, to prevent false induction.
4. Whole line docking: The device can be docked with signals from other devices;
5. Detection part: The device has its own lighting lamp, and the device has its own fluorescent lamp, which can detect objects with fluorescent agents.
