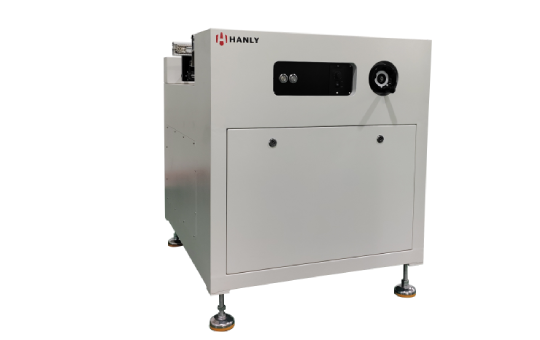

HL-RES201

  • Technical Details

Dimensions L*W*H

L800mm*W890mm*H920mm

PCB transfer height:

920±20mm

Transportation speed

0-3500mm/min adjustable

Delivery direction:

L→R(R→L)

Transmission motor power

AC220V 40W

Delivery method

Chain conveyor (35B5 mm long pin stainless steel chain)

Conveyor rail width

50-450mm

PCB board size

MAX: L450*W450

PCB board component height

MAX70mm

control method

Push button control

power supply

AC220V

Total power

0.1KW



Function Description:
1, control part: button control, simple and easy to understand;
2, The Rack part: the frame uses galvanized plate welding production, electrostatic powder baking process completed;
3, transport part: Delivery speed 0 ~ 5mm m/min adjustable; 3.5 thick and high-hardness aluminum transport, stainless steel chain drive, the delivery width can be adjusted manually, with a range of 50-450mm; and the delivery mode can be divided into in-line and in-line, sensors for Taiwan Yangming sensors, anti-false induction.
4, The whole line docking: equipment can be other equipment signal docking
