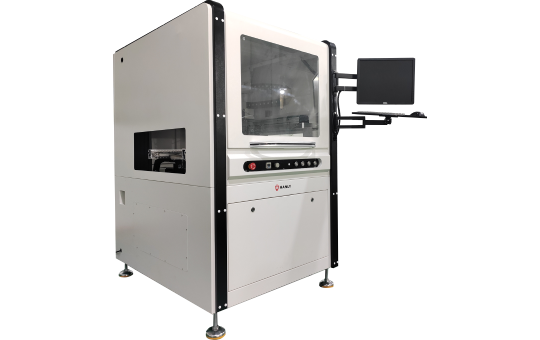

Conformal Coating Machine

HL-REST532

Device parameters：

Frame size L * W * H	L1035mm * W1300mm * H1700mm
control method	Industrial computer + board
Operation method	Computer control
Programming style	Manual teaching
Number of running programs stored	1000 or more
PCB transmission height:	920 ± 20mm
Transport speed:	0-5000mm / min
Transmission direction:	L → R (R → L)
Transmission motor power	60W motor speed reducer
Conveyor rail width	50-450mm
PCB board size	MAXL450 * W450
PCB board component height	MAX70mm
Way width adjustment	automatic adjustment
X.Y.Z drive method	servo motor
X.Y.Z maximum speed	800mm / s
Valve type:	1 needle valve+1 Spray valves / 2-4 Sets of Valves Optional
Tank volume	One 10L stainless steel inner bucket with stirring pressure bucket + one small washing pressure bucket
Lighting section	Equipment comes with lighting source
Detection section	Equipment comes with UV detection light source
power supply	AC220V
Gas source	4-6kgf / cm2
Total power	1.8KW
Minimum glue output	0.4g



Scope of application:

UV dispensing, component packaging, solder paste, red glue, black glue, semiconductor packaging, wafer fixation, etc

X. Y, Z, U 4-axis movement, the valve body can rotate 360 ° to realize all-around dispensing function

Characteristic:

➢ Computer control, WINDOWS operating system, audible and visual fault alarm and menu display

CCD visual positioning system

Servo motor+ball screw drive

Can carry: injection valve

Automatic thermostatic system of valve body ensures consistent fluidity of coating

Online visual programming

The laser height detection system can be selected, and the Z-axis height can be automatically calibrated after the workpiece is deformed

Workpiece heating system can be selected to enhance the fluidity of paint when filling the bottom

Precision weighing system can be selected to intelligently control and detect the dispensing amount to ensure the consistency of dispensing
