Reject Conveyor

  • Technical Details

HL-350SM

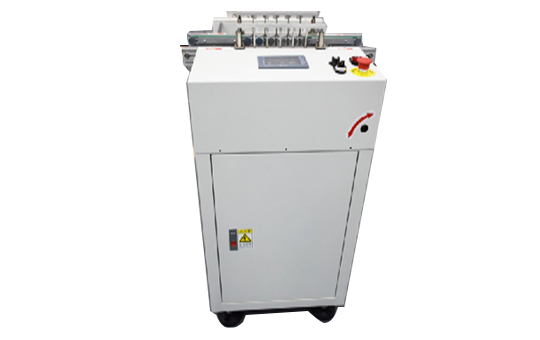

1M REJECT CONVEYOR

Features:
1) Appearance structure: welded sheet metal, the surface of the sealing plate is sprayed, and the single-track screening machine can pass through the board to 390mm
2) Dimensions: (L)1000mm*(W)710mm*(H)1042mm
3) The platen is welded with 1.5MM steel plate and treated by electrostatic spraying
4) The track adopts a special open-mould all-aluminum profile track,
5) Lifting power adopts: stepping lift. Belt running power adopts: stepper motor transmission
6) The track adjustment power adopts: stepper motor adjustment, the position is more accurate, and the track adjustment screw adopts ball screw adjustment to ensure a smoother and more precise position.
7) The control panel is controlled by touch screen, which is more convenient for man-machine dialogue. The controller is controlled by Panasonic programmable controller, and the power supply is AC220V.
8) 5 pieces of NG boards can be stored, with a layer height of 15mm. The machine can only use the NG screening function when the width of the track is within 350MM of the board width, and the screening function will fail if the width exceeds this width.
9) The connecting signal line adopts the standard supporting SMEMA interface.

MODEL HL-350SM HL-460SM
Dimension L1000xW710xH1042mm L1000xW110xH1000mm
Style General General
PCB size 50x50-460x390mm 50x50-530*460
Conveyor style Belt type
Process lane Single lane
Conveyor speed 0.5-20M/min
Process height 900±20mm
Flow direction L→R or R→L Optional, Front fixed
Control sector 1
Weight 80kg 90kg
Power requirement 220Vac 50/60Hz ,1ph
