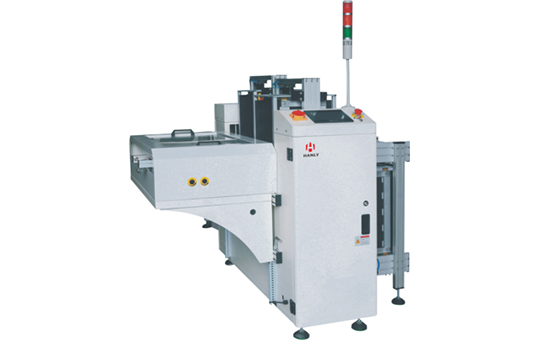

HL Series NG/OK COMBO Unloader

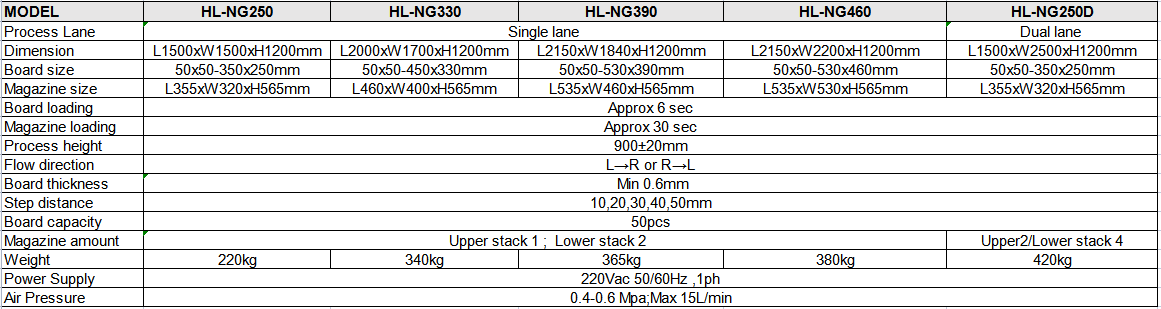

  • Technical Details

Features
1 After AOI, with automatically recognize the NG/OK pcb separately by receiving AOI signal
2 Special international aluminum profile guide rail and thousand island type plastic chain
3 90W Taiwan-made motor drive, ball screw makes the material frame step up and down
4 Pneumatic clamp structure
5 0.7M long transfer type push plate guide rail
6 The pitch of the lifting platform is adjustable
7 Mitsubishi PLC programmable controller control
8 Comes with good and bad board separation function
9 The control panel is a display-controlled touch screen
10 With electric control box
11 Compatible with SMEMA interface
12 Multi-size optional
13 Dual Lane structures are available
