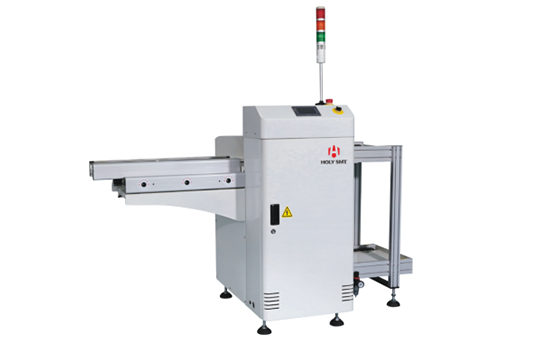

HL Series UNLOADER

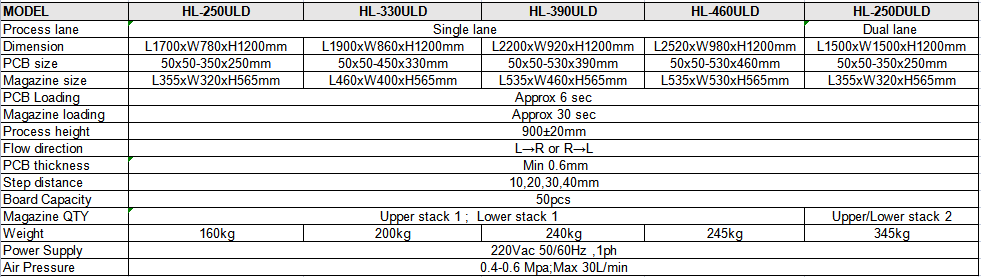

  • Technical Details

Features
1 Suitable for single-sided or double-sided PCB use
2 Special aluminum profile guide rail and special plastic chain
3 0.7M long push rail guide
4 90W Taiwan-made brake motor drive, using ball screw to make the material frame step up and down
5 The transmission motor adopts 15W constant speed Taiwan-made motor
6 Pneumatic clamp structure
7 Mitsubishi PLC/ Panasonic PLC Optional
8 Pneumatic components (the position of the push plate cylinder is adjusted with a screw rod)
9 With Touch Screen
10 Compatible with SMEMA interface
11 With electric control box
12 Different PCB sizes optional
13 Double lane are available
