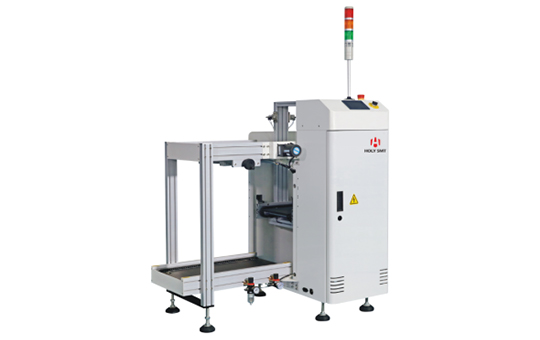

HL series Automatic Loader

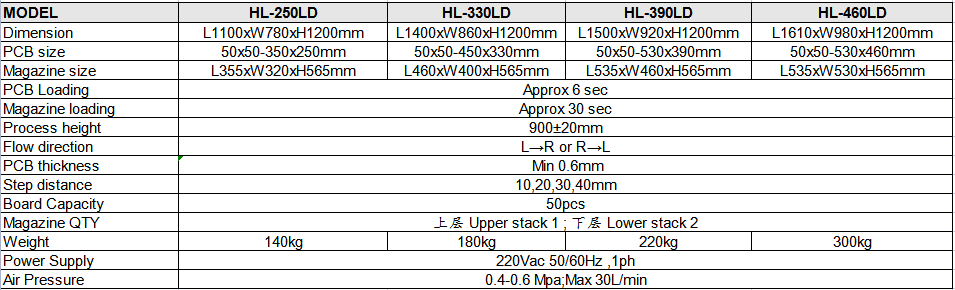

  • Technical Details

Features
1 Suitable for single-sided or double-sided use
2 Special aluminum profile guide rail and special thousand island type plastic chain
3 90W Taiwan-made brake motor drive, using ball screw to make the material frame step up and down
4 The transmission motor adopts 15W constant speed Taiwan-made motor
5 Pneumatic clamp structure
6 Mitsubishi PLC programmable controller control
7 Pneumatic components (the position of the push plate cylinder is adjusted with a screw rod)
8 The operation control panel is a display control true color touch screen
9 Compatible with SMEMA interface
10 With electric control box
11 Multiple PCB Sizes Available
