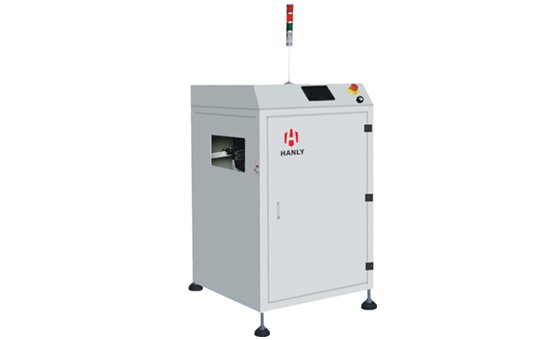

HL series Vacuum Loader

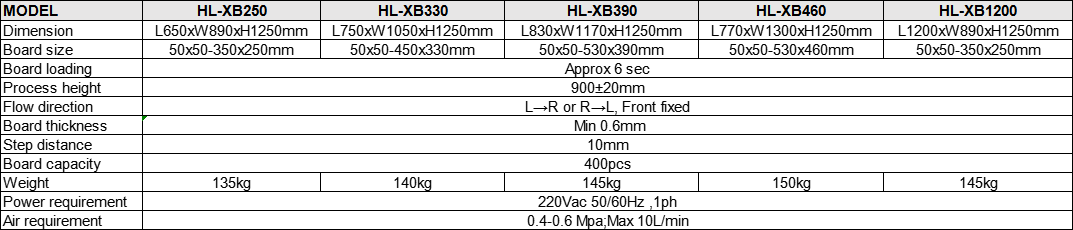

  • Technical Details

Features
1 Use the vacuum adsorption method to realize the SMT Bare Board Load Operation
2 independent vacuum generator, high pressure suction, adjustable position
3 Conveying adopts stepper motor
4 The conveyor belt adopts 7mm flat belt
5 The motor drives the screw to adjust the width of the PCB
6 Configure the oil-water separator
7 Mitsubishi PLC control & Panasonic PLC Optional
8 Real-time fault monitoring
9 Compatible with SMEMA interface
10 Touch screen operation
11 Multiple PCB sizes Optional
