HL series Vaccum suction Loader

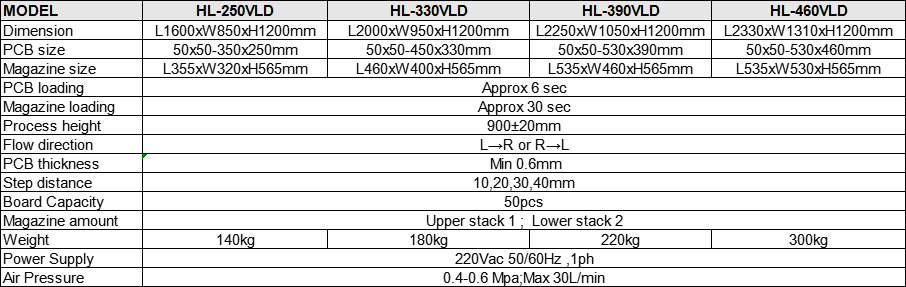

  • Technical Details

Features
1 Compatible with clean PCBa or single and double side board work at the same time
2 Special aluminum profile guide rail and special type of plastic chain
3 90W Taiwan-made brake motor drive, using ball screw to make the material frame step up and down
4 The transmission motor adopts 15W constant speed Taiwan-made motor
5 Pneumatic clamp structure
6 Mitsubishi PLC or Panasonic PLC optional
7 Pneumatic components (With adjustable Ball Screw)
8 Operation control panel used true color touch screen
9 Compatible with SMEMA interface
10 With electric control box
11 Multiple PCB Sizes Available
